COMPLIANT PIN, ALLOY 7025 FOR THE AUTOMOTIVE INDUSTRY
Processes: stamping, photo-etching, plating, reel to reel, selective plating. Progressive die, EON (eye of the needle).
Tightest Tolerance: +/- .001”
Material Thickness: .025”
Product Length: 1.125”
Product Width: .090”
Product Height: .400”
Base Material: Alloy C7025, 7025
Plating: Selective bright silver, bright tin and Ductile nickel
Special Feature: Compliant pin, eye of the needle (EON), progressive die, reel to reel, selective plating
Industry: Automotive Electronics
Volume: 24,000 pieces |
|
DRAWN CUP, 260 BRASS FOR HEARING AID
Processes: Deep draw, stamping, wire EDM, forming, prototype, low volume stamping.
Tightest Tolerance: +/- .001”
Material Thickness: .003”
Product Length: .150
Product Width: .150”
Product Height: .025”
Base Material: c260, 260 brass
Special Feature: small holes, deep draw, pinch trim
Industry: medical
Volume: 200 pieces |
 |

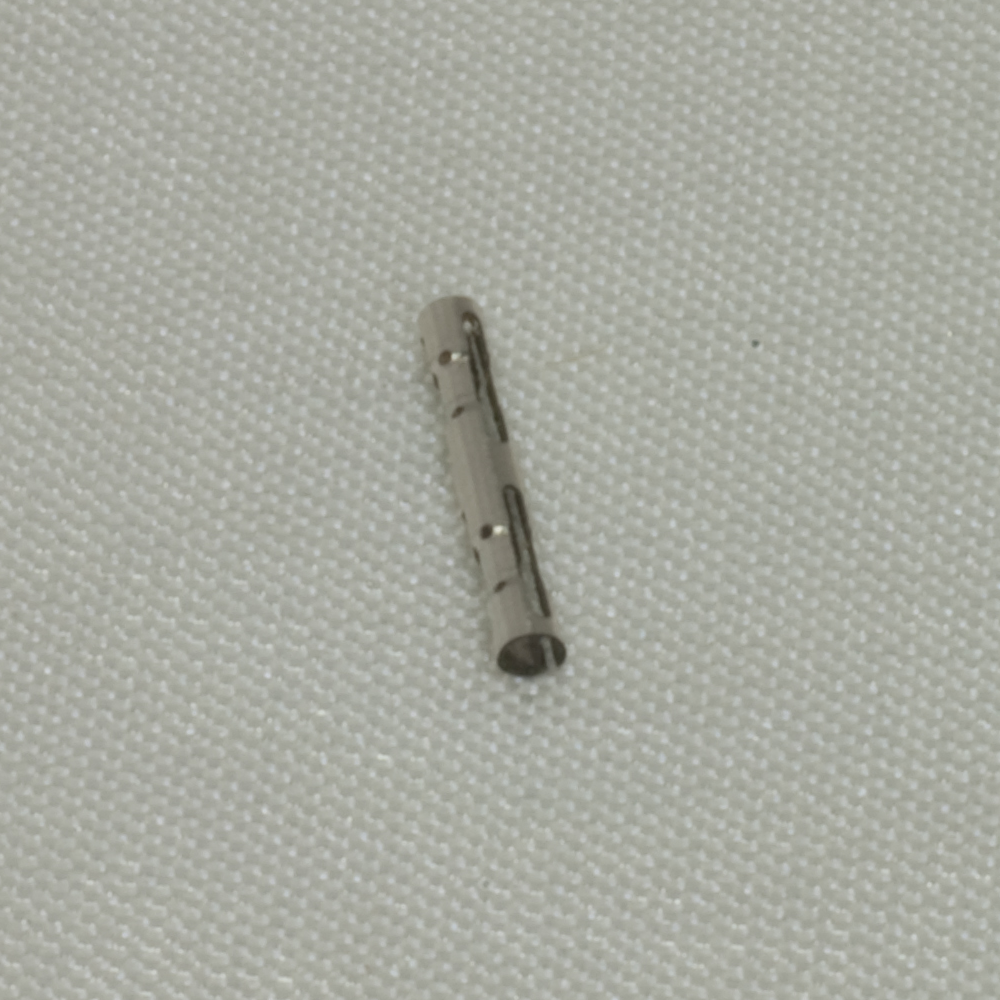

CONTACT, PLATINUM/IRIDIUM 90/10 FOR THE MEDICAL DEVICE INDUSTRY
Processes: Wire EDM, Micro Stamping, Forming.
Tightest Tolerance: +/- .001”
Material Thickness: .002”
Product Length: .100
Product Width: .015
Product Height: .015
Base Material: Platinum / Iridium 90/10
Special Feature: small holes, micro stamping
Industry for Use: Medical Devices
Volume: 300 pieces |
 |
SPRING RING CONTACT, 1075 ANNEALED SPRING STEEL, FOR MEDICAL INDUSTRY
Processes: stamping, photo-etching, plating, heat treating.
Tightest Tolerance: +/- .005”
Material Thickness: .016”
Product Length: .750”
Product Width: .750”
Product Height: ..250”
Base Material: 1075 Cold Rolled Annealed Spring Steel
Plating: Hard Gold over Ductile Nickel
Special Feature: contact spring, flat spring, bushing, fourslide.
Industry: medical
Volume: 100 pieces |
 |

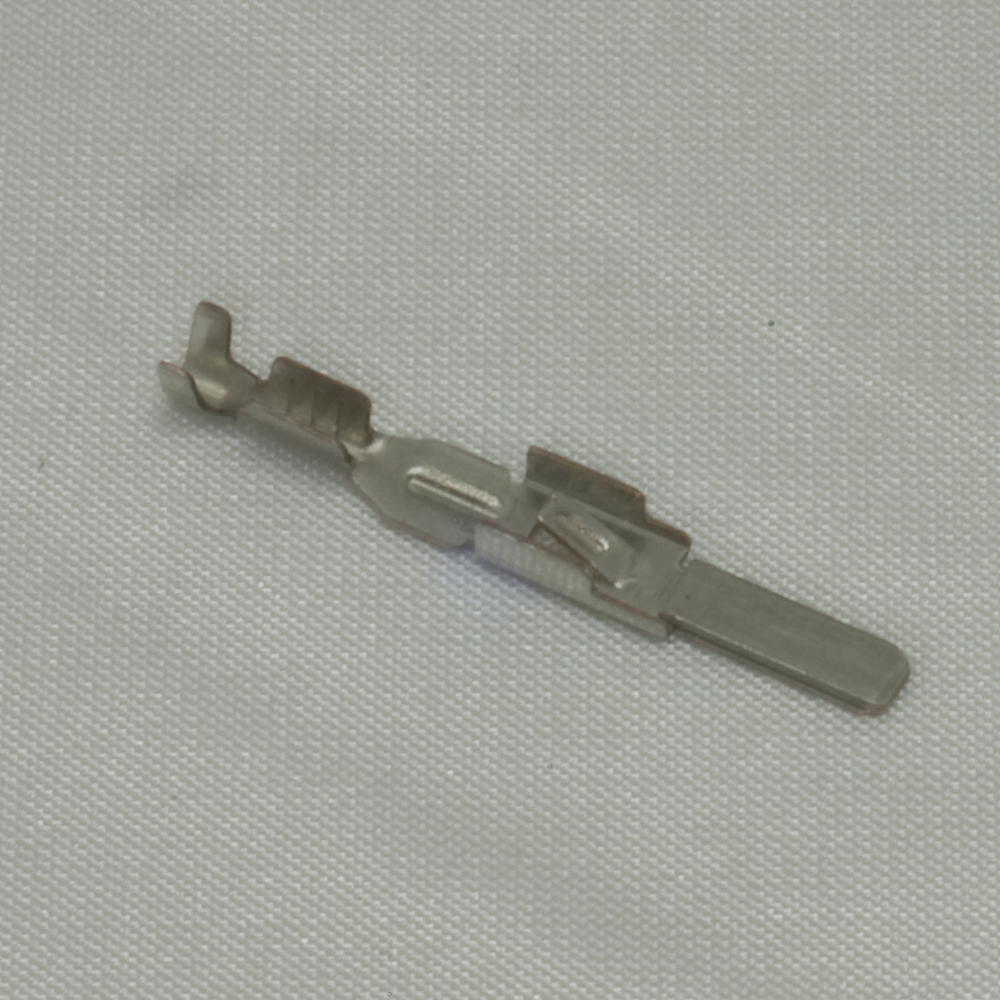

CRIMP TERMINAL MALE, TIN PLATED PHOS BRONZE CONTACT FOR THE AUTOMOTIVE INDUSTRY
Processes: photo-etching, chemical milling, die cutting, forming, coining, plating, shear-form, prototype, low volume stamping
Tightest Tolerance: +/- .002”
Material Thickness: .012”
Product Length: 1.125"
Product Width: .350”
Product Height: .125”
Base Material: C510, 510 Phos Bronze
Plating: Bright Tin over Copper
Special Feature: shear form, hem, crimp, wire restraint, terminal,
Industry: Automotive
Volume: 500 pieces |
|

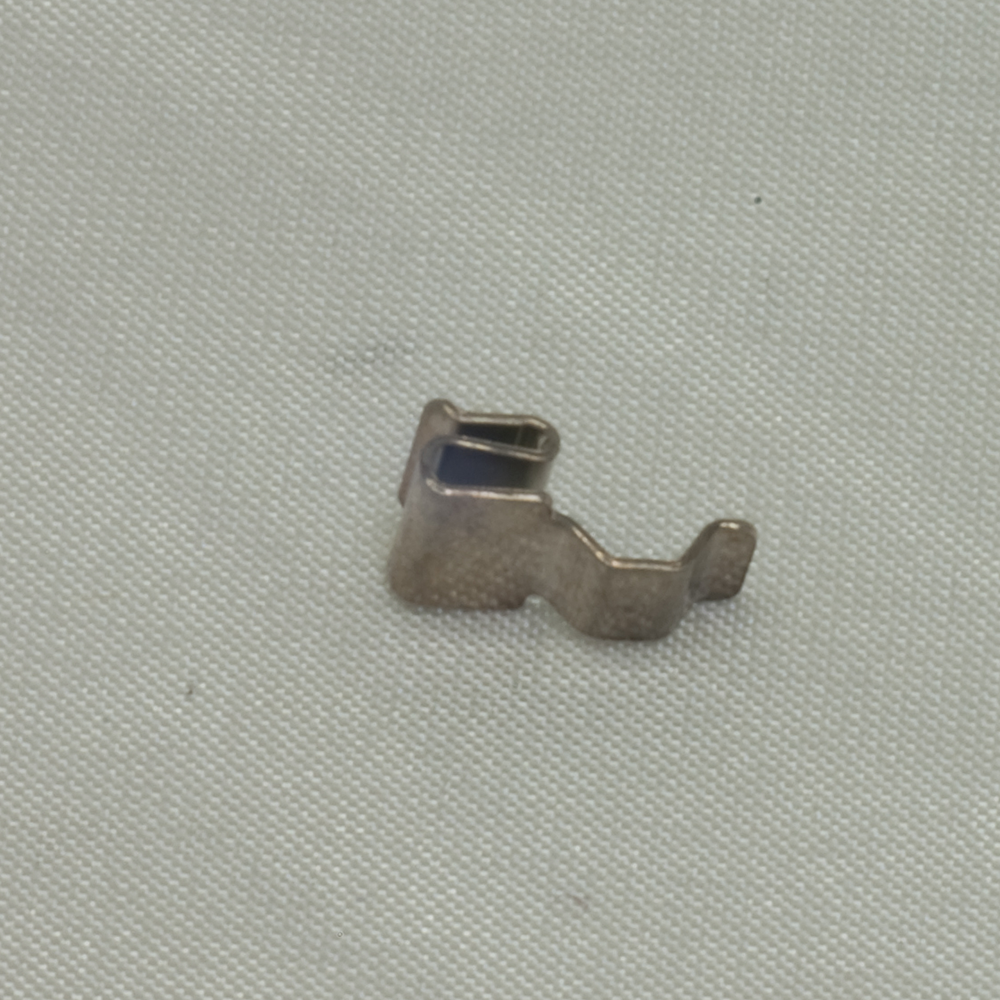

SPRING CLIP BERYLLIUM COPPER C172 FOR THE ELECTRONICS INDUSTRY
Processes: Photo-etching, chemical milling, forming, heat treating, plating
Tightest Tolerance: +/- .003”
Material Thickness: .012”
Product Length: .350
Product Width: .200
Product Height: .200
Base Material: C172 BeCu ¼ HT, Beryllium Copper
Plating: Bright Tin over Ductile Nickel
Special Feature: Flat Spring
Industry for Use: Electronics
Volume: 500 pieces |
